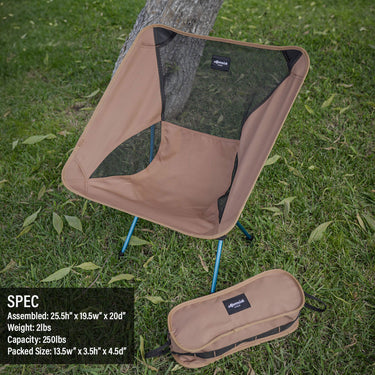

Maverick Flex Camp Chair Brown
Pickup available at Maverick Cycles
Usually ready in 24 hours
Introducing New Flex camp chair is quickly gaining popularity thanks to its additional features such as mesh fabric, lightweight aluminum frame construction, and excellent ventilation. This versatile chair has earned its reputation for being compact, durable, and perfectly suited for on-the-go adventures.
What truly sets the Flex Chair apart is its remarkable comfort and unparalleled versatility. This makes it the perfect choice for a wide range of activities, including backpacking and bikepacking expeditions, music festivals, and leisurely days at the beach or in the park. Whether you're seeking durability, portability, or all-around comfort, the Flex chair delivers on all fronts, making it an excellent companion for your outdoor escapades.
Product Details
- Real-World Fast™ aero optimization
- Tube shapes complement SES rim shapes
- Max Tire Clearance: 35 mm
- Frame Weight: 850 grams (56cm, Painted, No Hardware)
Frame Specs
Frame Material
|
ENVE M.O.D Carbon
|
Fork Material
|
ENVE M.O.D Carbon
|
Target Application | Road Race/Performance |
Sizes(cm) | 47, 50, 52, 54, 56, 58, 60 |
Fork Rake | 55, 51, 47, 43, 39 |
Frame Size/Fork Rake | 47cm/55, 50cm/51, 52cm/47, 54cm/47, 56cm/43, 58cm/43, 60cm/39 |
Frame Weight | 850g +/- 2% (Size 56, Painted, No Hardware) |
Headset | ENVE Integrated IS52/IS52 Internal Drop-In |
Headset Bearing | 1.5″ IS52 Upper and Lower |
Seat Post Diameter | ENVE Aero |
BB Type | T47 Inboard Bearing |
Brake Mount | Flat Mount |
Front Axle | 12×100 (Total Length: 122, TP:1.5, TL:15) |
Rear Axle | 12×142 (Total Length: 168, TP:1.5, TL:14) |
Minimum Tire Size | 25c |
Optimal Tire Size | 27c-32c |
Maximum Listed Tire Clearance | 35c |
Frame Routing | Internal |
Geometry
MELEE GEOMETRY CHART
47 | 50 | 52 | 54 | 56 | 58 | 60 | |
Reach | 370 | 376 | 381 | 386 | 394 | 400 | 408 |
Stack | 509 | 525 | 539 | 552 | 571 | 589 | 609 |
Top Tube | 506 | 522 | 536 | 547 | 563 | 578 | 598 |
Fork Rake | 55 | 51 | 47 | 47 | 43 | 43 | 39 |
Seat Tube Length(c to top) | 417 | 434 | 452 | 466 | 490 | 508 | 531 |
Max Saddle Rail Height (w/350mm post) | 692 | 709 | 727 | 741 | 765 | 783 | 806 |
Max Saddle Height (w/ ENVE SLR Saddle)* | 728 | 745 | 763 | 777 | 801 | 819 | 842 |
Seat Tube Angle | 75.1 | 74.5 | 74 | 73.8 | 73.5 | 73.2 | 72.7 |
Head Tube Angle | 71.1 | 71.5 | 72.2 | 72.4 | 73.3 | 73.3 | 73.6 |
Head Tube Length | 105 | 120 | 130 | 145 | 160 | 180 | 200 |
BB Drop | 75 | 75 | 75 | 73 | 73 | 71 | 71 |
Chainstay Length | 410 | 410 | 410 | 410 | 410 | 412 | 412 |
Wheel Base | 980 | 983 | 983 | 991 | 992 | 1006 | 1013 |
Front Centre | 582 | 585 | 584 | 592 | 593 | 605 | 611 |
Standover | 693 | 710 | 728 | 744 | 768 | 787 | 809 |
BB Height (29mm Tire) | 268 | 268 | 268 | 270 | 270 | 272 | 272 |
Trail (27mm Tire) | 58.1 | 59.3 | 59.1 | 57.9 | 56.8 | 56.5 | 58.1 |
Trail (29mm Tire) | 58.8 | 59.8 | 59.7 | 58.4 | 57.3 | 57 | 58.7 |
Trail (31mm Tire) | 59.4 | 60.4 | 60.2 | 59 | 57.8 | 57.5 | 59.2 |
Trail (33mm Tire) | 60.2 | 61.2 | 61 | 59.7 | 58.5 | 58.2 | 59.9 |
Trail (35mm Tire) | 60.9 | 62 | 61.7 | 60.4 | 59.2 | 58.9 | 60.5 |
Compatibility
Component Compatibility
Handlebars
|
SES AR (38, 40, 42, 44, 46)
|
Stem |
ENVE Integrated (80, 90, 100, 110, 120, 130)
|
Seat Posts |
Aero 275mm x 0 Offset Aero 350mm x 0 Offset Aero 350mm x 20 Offset |
DRIVETRAIN COMPATIBILITY
Shimano Mechanical 1x
|
Yes
|
Shimano Mechanical 2x |
Yes
|
Shimano Electronic Di2 (1x/2x) | Yes |
SRAM Mechanical 1x | Yes |
SRAM Mechanical 2x | No (Melee requires continuous housing for FD) |
SRAM AXS (1x/2x) | Yes |
Campy Mechanical 1x | Yes |
Campy Mechanical 2x | No (Melee requires continuous housing for FD) |
Campy Electronic EPS | Not Compatible |
BRAKE ROTORS
Fork
|
Fork is 160mm only
|
Frame | Rear brake/frame is 140mm or 160mm with adapter. |
What's Included
WHAT'S INCLUDED
Package | PN | Description |
Frame | ||
Fork (Rake is Frame Size Dependent) | ||
Installed On Fork | 200-2009-008 | Front Axle |
Installed On Frame | 000-0050-951 | Rear Axle |
Installed On Frame | 100-5003-014 | Front Derailleur Mount |
Installed On Frame | 100-5003-013 | Rear Derailleur Mount |
Installed On Frame | 000-0050-903 | M5 Button Head Accessory Bolts (M5x0.8x13mm, Button Head) |
Installed On Frame | 000-0050-946 | Fender Mount Set Screws (M5x0.8x10mm) |
Installed On Frame | 100-5003-904 | Chainstay ProtectorDisc Brake Rotor Protector |
In Bag | 100-5003-903 |
Front Derailleur Housing Grommet Front Derailleur Di2 Grommet Front Derailleur Cable Hole Grommet |
In Bag | 100-5003-901 | Seatpost Clamp Kit |
In Bag | 100-5003-014 | Headset Kit |
In Bag | 100-5003-XXX | Top Headset Bearing Cover (Frame Color Dependent) |
In Bag | 200-0000-032 | Fork Compression Plug |
In Bag | 000-1000-971 | Fork Brake Caliper Bolts and Washers (M5x0.8x40mm Torx Button Head Screw, SS) |
In Bag | Owner's Manual | |
In Bag | Torque Wrench (Includes Extra Accessory Bits) | |
In Bag | Frame Finishing Kit (Cable Sheathing, Heat Shrink, Padded Foam) |
